How to Find ACE Parts

Replacement parts for your Polaris ACE can be identified and ordered using the Polaris online parts catalog.

To find a part, visit the ACE online parts catalog.

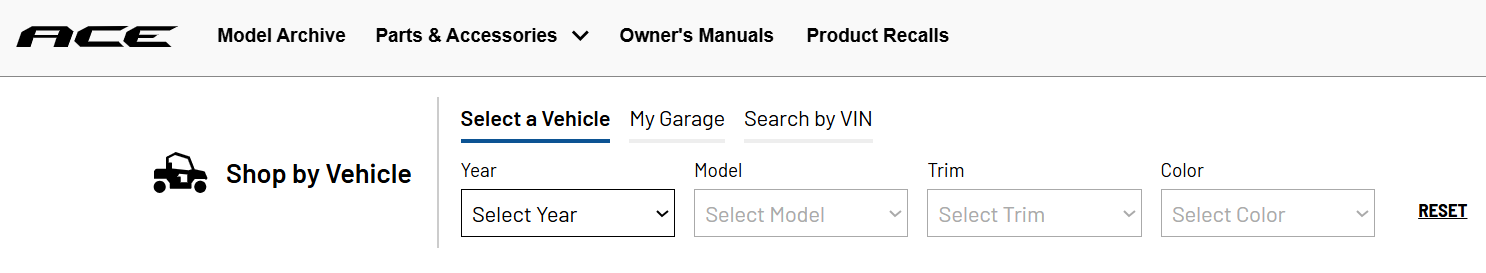

From the drop-down menu, select the year and model of your ACE and then click “Find Parts.”

Parts catalog

You then will be prompted to choose an assembly.

Choose assembly

For example, let’s find a wheel bearing for one of the front wheels of an ACE. So we’re looking for the front suspension assembly. We’ll select “SUSPENSION, FRONT.”

Select assembly

After selecting the assembly, you’ll see a diagram — which can be zoomed in or out — with part numbers that correspond to the listings below.

Assembly diagram

The bearing is item 3. So if we scroll down to 3, we’ll find that it is part number 3514822 and costs $54.99. Here it also can be added to your shopping cart. Note that the default quantity is the number that comes with the complete assembly. In this case, that is two. To only order one, change the quantity to 1 before adding it to your cart.

Parts listing

Some parts will show multiple part listings for the same item number, as shown below. The part you need depends on which color or edition your vehicle is.

The final two letters in brackets correspond to the final two characters of your model number. To find your model number, use the VIN Search Tool.

Your Polaris Dealer can help you find the correct part for your vehicle. To find a dealer near you, use the Dealer Locator.

Multiple parts

You also may use the parts catalog to search by individual part number.

Search by part number

If we enter the part number for the bearing, 3514822, and click “Go,” it shows the description and price. The part also can be added to your shopping cart.

Part search results

The search results also provide a list of vehicles that use the part. This can be viewed by clicking “Select Model.”

Select model

The pop-up menu provides a list of all Polaris vehicles that use the part, in this case, the bearing. Select the vehicle. In this example, we’re using a 2018 ACE 900 XC.

Model select

If we click on that model, it will display a list of assemblies containing the part. Click on the assembly you wish to view.

List of assemblies

This brings you to the assembly diagram. The bearing, item 3, is highlighted in the diagram. Scroll down to find the full list of parts for the assembly or to add them to your shopping cart.

Assembly diagram

Note that some older parts displayed in the parts catalog no longer are available from POLARIS. Contact your local POLARIS Dealer for availability. Additionally, any item shown on the schematic comes as a unit of 1. If you need multiples of an item you must adjust the amount you order.

Consumer warning: In order for work to be performed safely and correctly, many parts replacement procedures and repair procedures must be done by trained POLARIS service technicians in a properly equipped shop. You must read the service manual and be familiar with the service procedures before starting the work. Certain procedures require the use of special tools that are not available to the general public and your Dealer will have to perform these procedures for you as necessary. If you have any doubt as to your ability to perform any of the procedures outlined in the service manual, contact an authorized POLARIS Dealer for service. Procedures indicated to be performed by Dealers only could void your warranty if performed incorrectly. The failure to follow correct procedures and use correct tools could result in serious injury or death.
