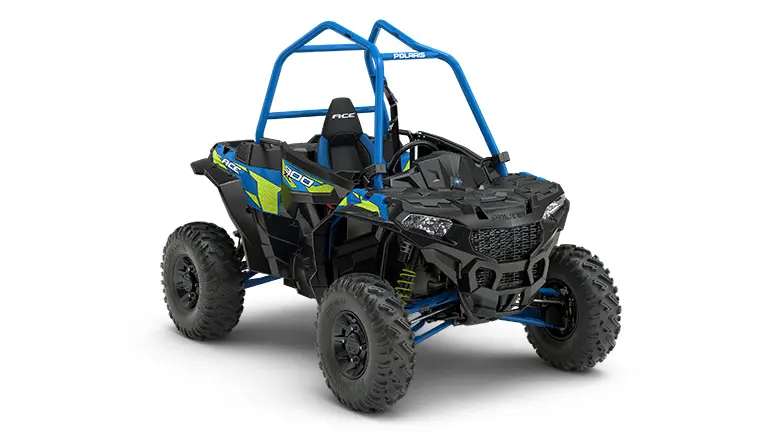

Polaris ACE® 900 XC VELOCITY BLUE

Engine & Drivetrain

Cooling
Liquid
Cylinders Displacement
875cc
Drive System Type
High Performance On-Demand True AWD/2WD
Engine Type
ProStar 875cc, 4-Stroke DOHC Twin Cylinder
Fuel System/Battery
Electronic Fuel Injection
Horsepower
78 HP
Transmission/Final Drive
Automatic PVT P/R/N/L/H; Shaft

Dimensions

Bed Box Dimensions (L x W x H)
17 x 35 x 4 in (43 x 89 x 10 cm)
Estimated Dry Weight
1,050 lb (476 kg)
Fuel Capacity
5.25 gal (19.9 L)
Ground Clearance
13 in (33 cm)
Hitch Towing Rating
Not Recommended
Hitch Type
N/A
Overall Vehicle Size (L x W x H)
94 x 59 x 72 in (238 cm x 150 cm x 183 cm)
Payload Capacity
575 lb (261 kg)
Seat Height (Laden)
28.75 in (73 cm)
Wheelbase
67.5 in (171.5 cm)

Brakes

Front/Rear Brakes
4-Wheel Hydraulic Disc
Parking Brake
Park In-Transmission

Additional Specifications

Cargo System
Lock & Ride, 3 Gal (11 L) Front Dry Storage, Dual Dash Trays
Doors
1/4 Doors
Electronic Power Steering
Standard
Instrumentation
All Digital Gauge: Speedometer, Odometer, Tachometer, 2 Tripmeters, Hour meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temp, Hi-Temp Light, Clock, Bluetooth Connectivity, Missed Call, Missed Text, Cell Signal Strength, Cell Battery Strength; DC Outlet
Lighting
Dual 50w Bumper Lights, Dual LED Brakelights/Taillights
Other Standard Features
1/4 Doors, Performance Steering, Cut & Sew Seat, In-Cab Storage Pockets, Accessory-Ready 4-pt Harness Integration, Digital Display with Bluetooth

Tires / Wheels

Front Tires
27 x 9-12; GBC Dirt Commander
Rear Tires
27 x 11-12; GBC Dirt Commander
Wheels
Cast Aluminum

Suspension

Front Suspension
Long Travel Dual A-Arm with stabilizer bar, WER® Clicker Needle Shocks, 12.3 in (31.2 cm) Travel
